Avento

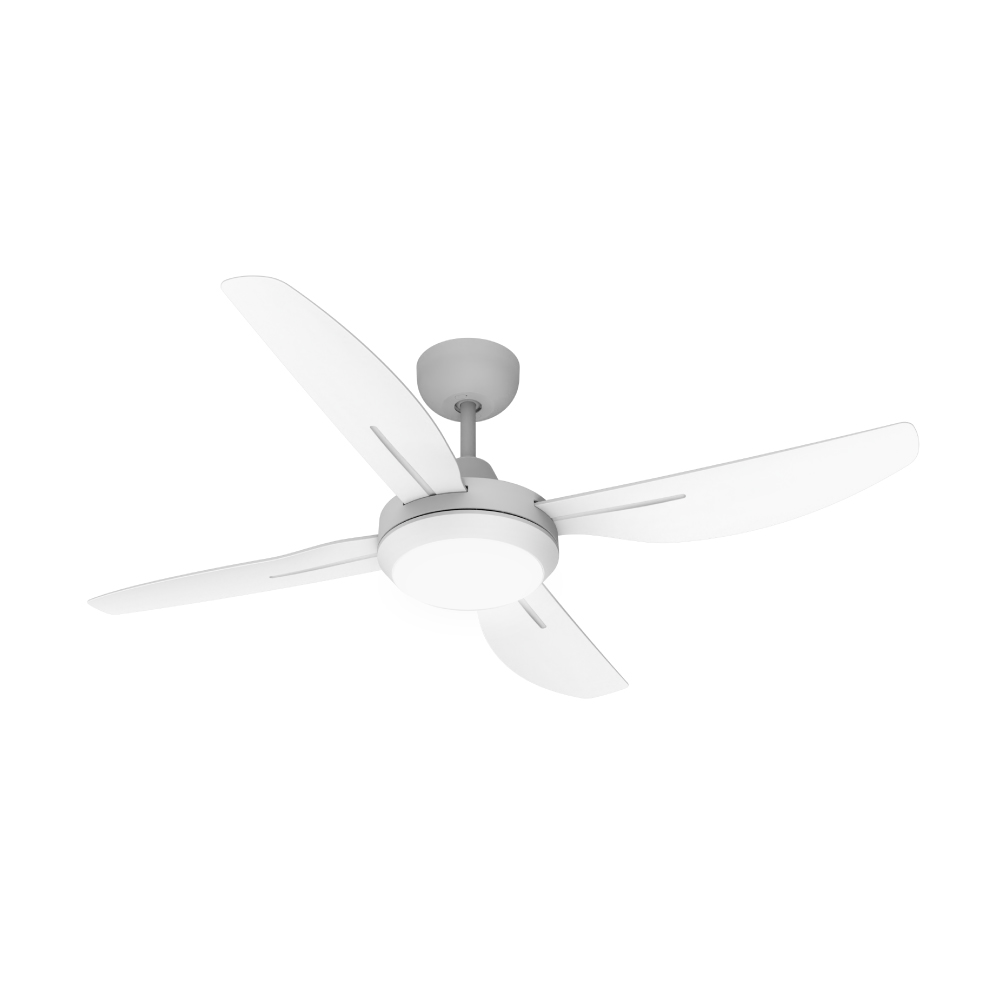

Lumio Avento 48 AC ceiling fan w/LED light – white
- Reliable AC motor with 3 speed settings
- Built in LED light with 3 colour choices
- Airflow up to 10,560 m³/hr for everyday comfort
- ABS blades resist warping and suit covered outdoor use
- 48 size fits bedrooms and living areas
- Simple wall switch control
- 6 year warranty (4 in home, 2 return to base)
Specifications
Mechanical
| IP Rating | IP20 |
|---|---|
| Fitting Colour | Matt White |
| Body Material | ABS |
| Diffuser Material | Polycarbonate |
Electrical
| Working Temp Range | -10 to 40 °C |
|---|---|
| Input Frequency | 50Hz Hz |
| Input voltage | 230Vac |
| In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6% | |
Lamp
| Colour Rendering Index (CRI) | >80 |
|---|---|
| CCT Configuration | TRI-CCT |
Colour temperature
| Warm White (3000 K) | 1350 lm |
| Cool White (4000 K) | 1400 lm |
| DayLight (5000 K) | 1400 lm |
Air Movement
| Motor Wattage | 75 W |
|---|---|
| Motor Type | AC |
| No. Speeds | 3 |
| Control | Wall control |
| Ceiling Rake | 13 ° |
| Ceiling Drop | 300 mm |
| Blade Pitch | 13 ° |
| Blade Material | ABS |
| Fan Size | 1220mm (48inch) |
Compliance
| Standards |
|
|---|
Warranty
| Domestic Use Warranty | 4 Onsite, 2 RTB (Total 6 years) |
|---|
Dimensions
| Product Height | 360 mm |
|---|---|
| Product Width | 1220 mm |
| Product Weight | 7800 g |
AVENTO/48
Ordering Information
| Order code | Item code | Description | Availability |
|---|---|---|---|
| 15246 | Avento 48 | Lumio Avento 48 (1220mm) AC ceiling fan w/LED light - white |
